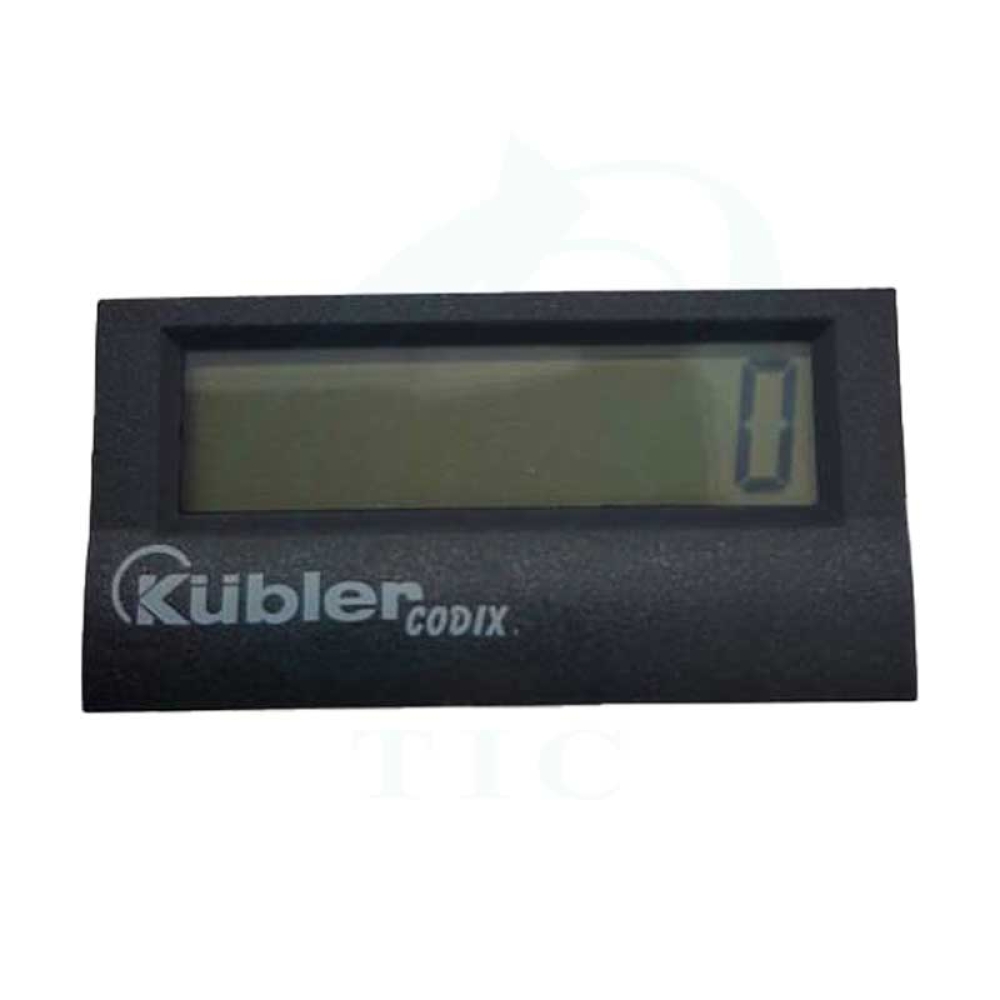

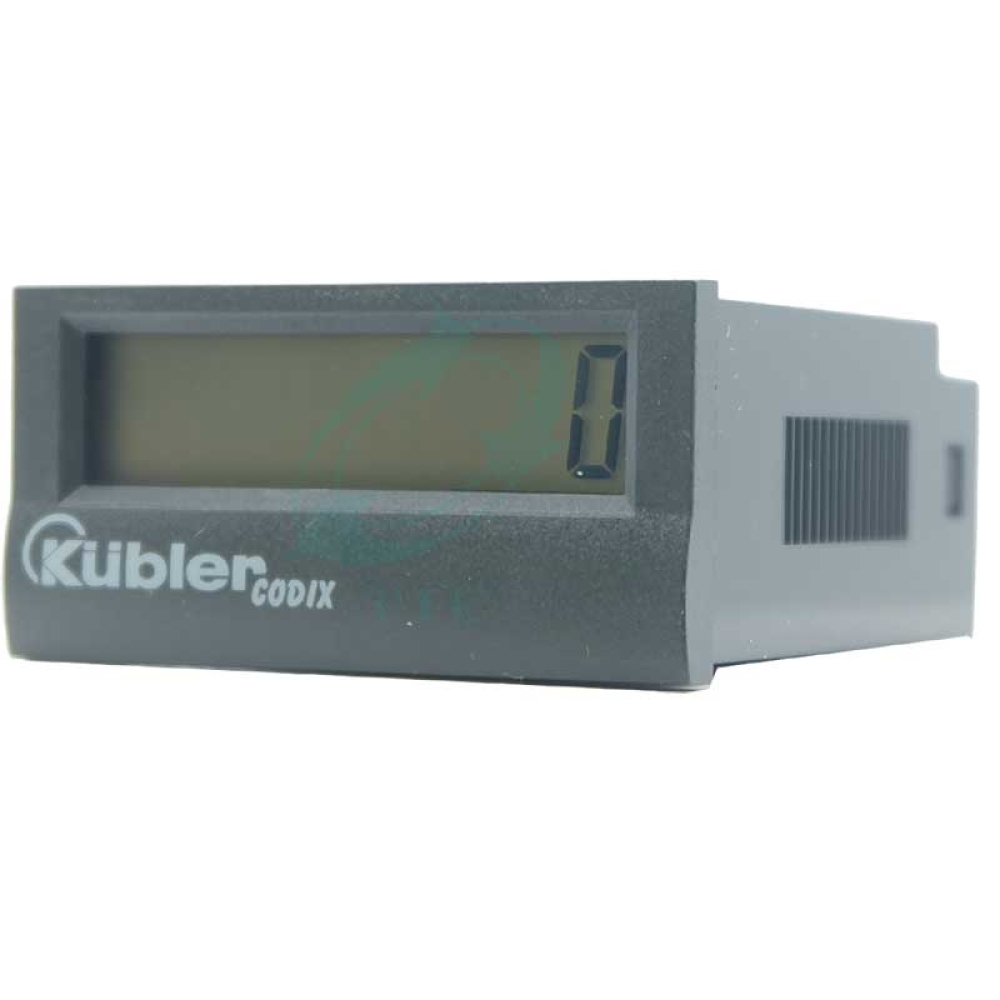

Tachometer / Speed Meter
Brand : Kubler
|

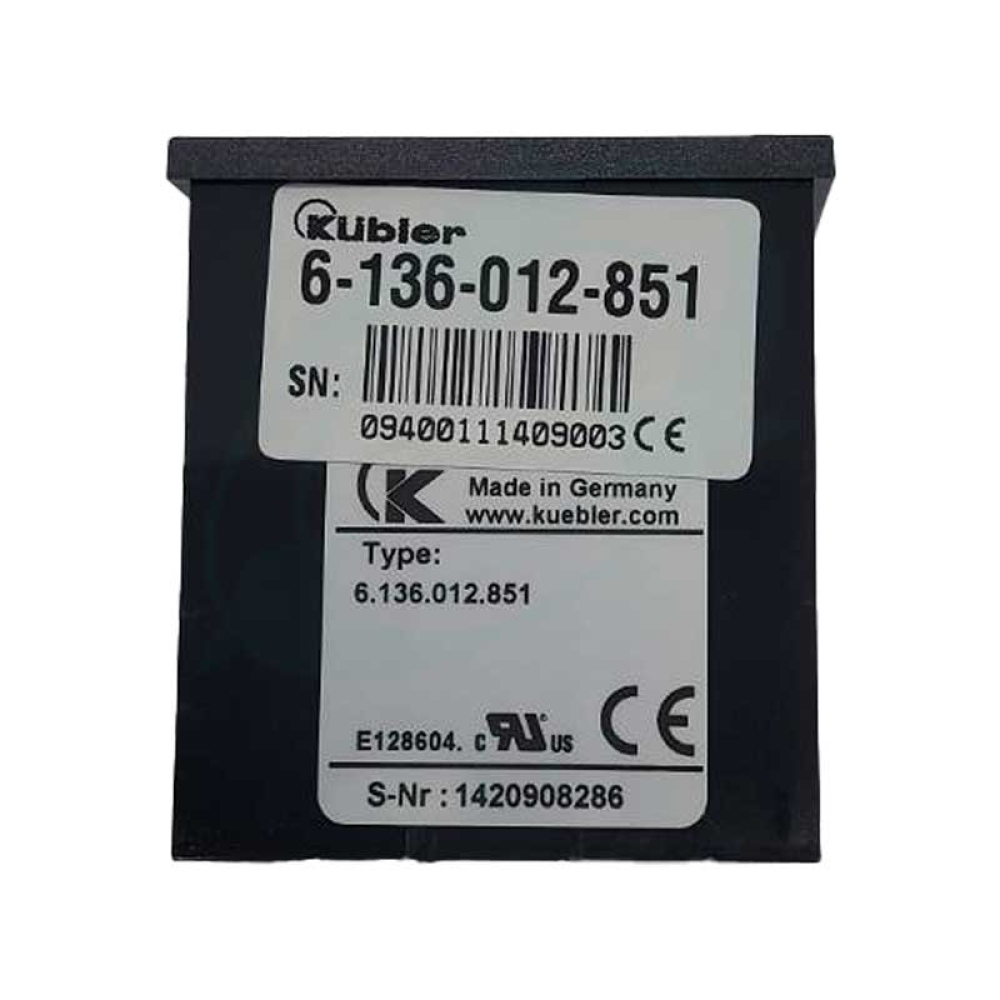

Model : 6-136 |
Type : Counter/Timer/Time switch Properties
operating temperature range
-10°c ถึง +60°c
output
None
Current rating
None
IP
IP65
details
Frequency displays / tachometers
-Display LCD, 8 digits, 8 mm [0.32“] high
- Supply voltage: 10 ... 30 V DC, max. 1,1 W
- with reverse polarity protection.90 ... 260 V AC max. 4 VA
- Display: 2 line LCD display, 6-digits

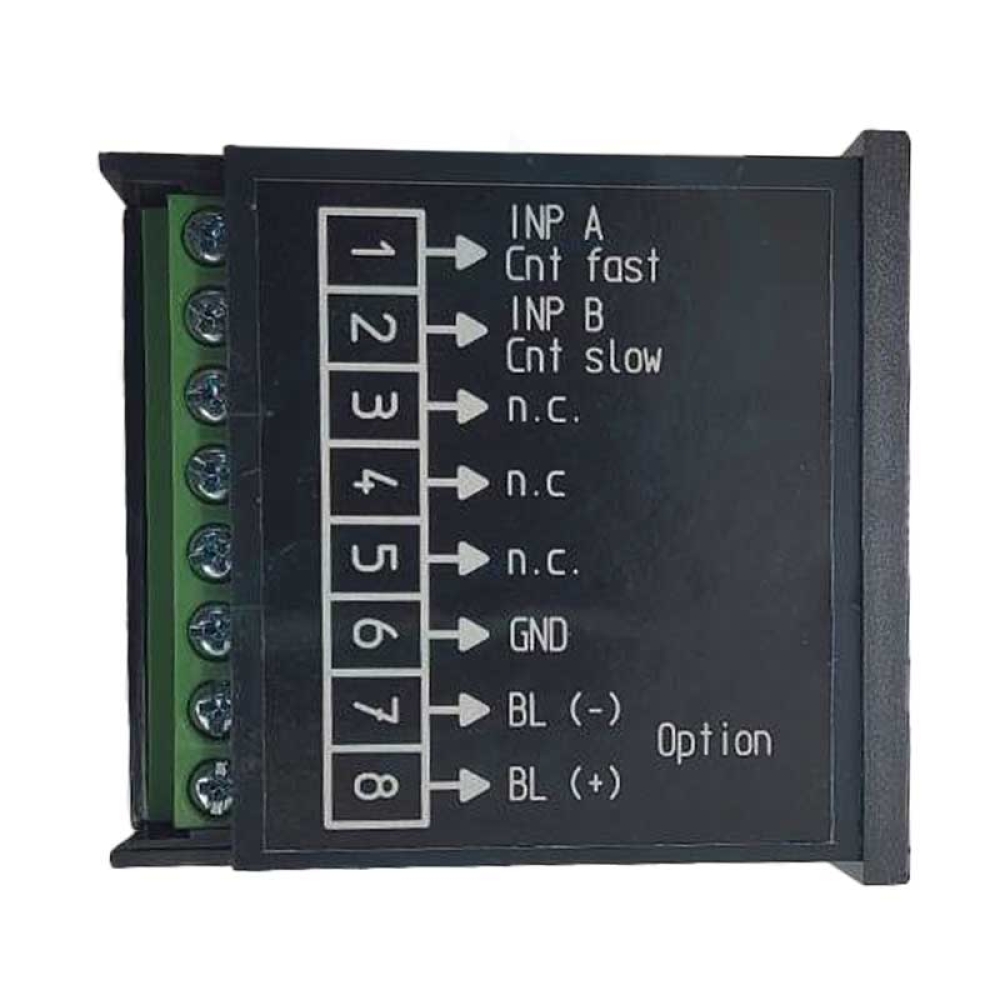

- Count inputs: 2 count inputs, 4 input modes are programmable
-internal lithium battery approx. 8 years at 20 °C [68 °F]
-Operating temperature -10 °C ... +60 °C
Protection IP65 (front side)
Weight approx. 50 g [1.76
-Display LCD, 8 digits, 8 mm [0.32“] high
- Supply voltage: 10 ... 30 V DC, max. 1,1 W
- with reverse polarity protection.90 ... 260 V AC max. 4 VA
- Display: 2 line LCD display, 6-digits
- Count inputs: 2 count inputs, 4 input modes are programmable
-internal lithium battery approx. 8 years at 20 °C [68 °F]
-Operating temperature -10 °C ... +60 °C
Protection IP65 (front side)
Weight approx. 50 g [1.76
Data Sheet
