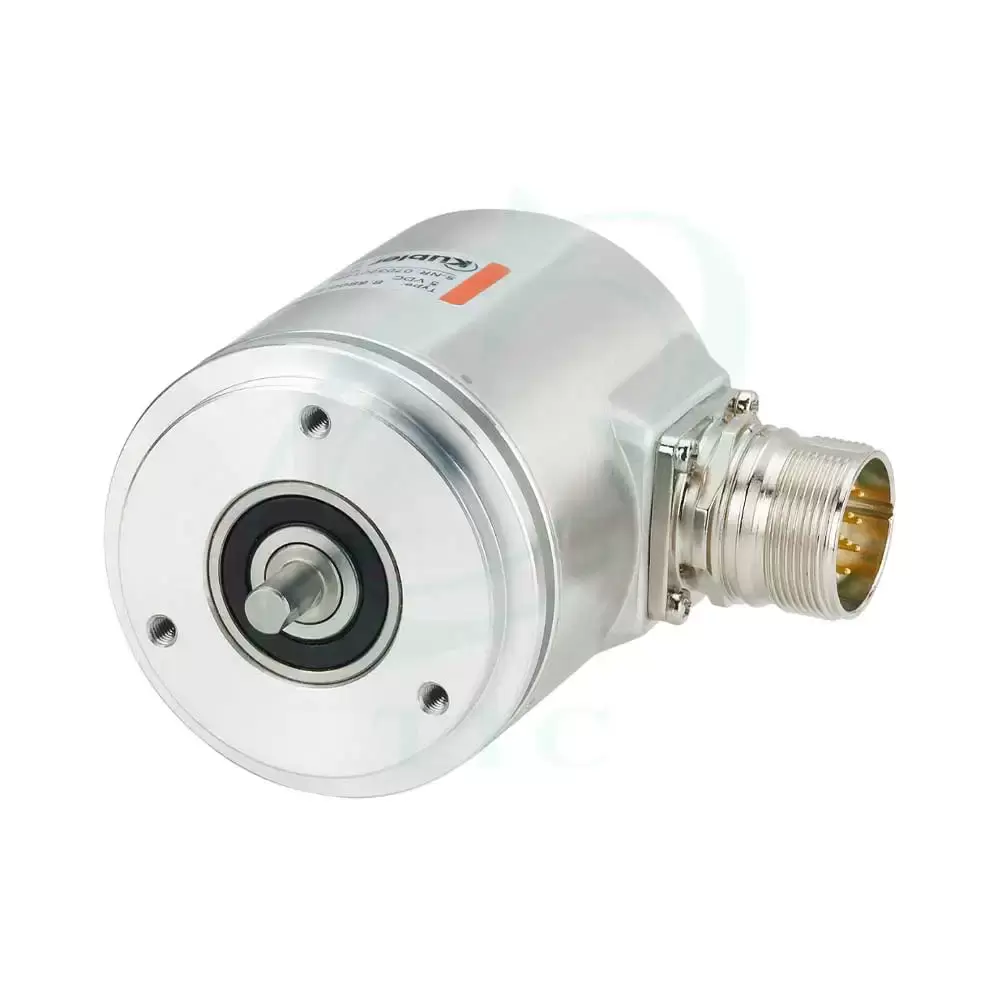

Encoder
Brand : Kubler
|
Model : 8-5803 (Shaft)High Temperature |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
Suitable for harsh applications (58 mm).
operating temperature range
Temperatures up to -20 ° C ... + 110 ° C.
Housing Material
stainless steel
power supply
RS422 : 5 VDC, RS422 : 10 - 30 VDC or Push – pull : 10 - 30 VDC (choose to order)
Core size/Hollow hole/Shaft hole
6 mm. , 10 mm. , 3/8”
output
Push-pull Transistor and Line-driver (D)
Number of pulses/cycle
25, 50, 60, 100, 125, 200, 250, 256, 300, 360, 500, 512, 600, 720, 800, 1000, 1024, 1200,1250,1500, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Wiring Diagram
Line out and M23 ,M12 (choose to order)
IP
IP 65
Design By
European quality standards from Germany
Data Sheet
