Insulation and Mega Ohm meter
Brand : Chauvin Arnoux
|

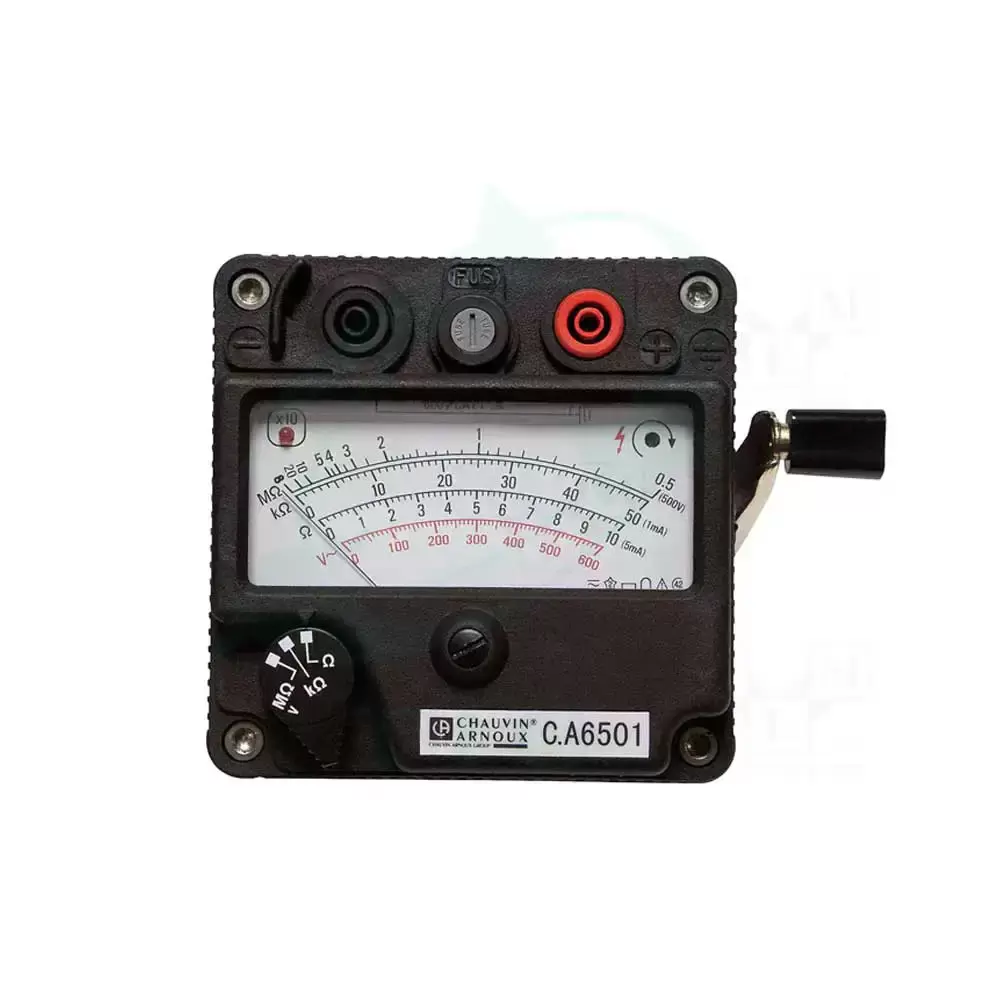

Model : CA-6501 (Insulation tester) |
Type : Meter/Multimeter Properties
body size
Size 120 x 120 x 130 mm.
Conectivity
-
screen size
Analogue
Maximum voltage
500 VDC
Measuring range
- Resistance measurement range 0.5 to 200 MΩ
- Resistance measurement range 45 to 500 kΩ
- Resistance measurement range 45 to 500 kΩ
IP
- IP52 protection standard
- Electrical safety standard IEC 61010 300V CAT III
- Electrical safety standard IEC 61010 300V CAT III
details
The portable C.A 6501 insulation tester is lightweight and compact. It can be operated with magnetic energy. Suitable for use in industrial areas residential office building power distribution system and telecommunication equipment Can be used in a variety of applications such as installing electrical systems in accordance with the standards. preventive maintenance Connecting cables, motors, circuit breakers and transformers, etc.
- can measure continuity
- Powered by electromagnets
- can measure continuity
- Powered by electromagnets
