Size 211 x 108 x 60 mm.

-

LCD display and bar graph display while testing

- Continuous measurement of 200 mA / 20 mA
- Measure voltage up to 700 V
- Measuring power frequency 15.3 - 800 Hz
- Resistance measurement 0 - 1000 kΩ
- Measuring capacitance 0.1 nF - 10 µF
- Measure and calculate cable distance 0 - 100 km

ย่านที่วัดค่าได้ 20 GΩ

IP54 protection, IEC 61557 600 V CAT IV safety standard.

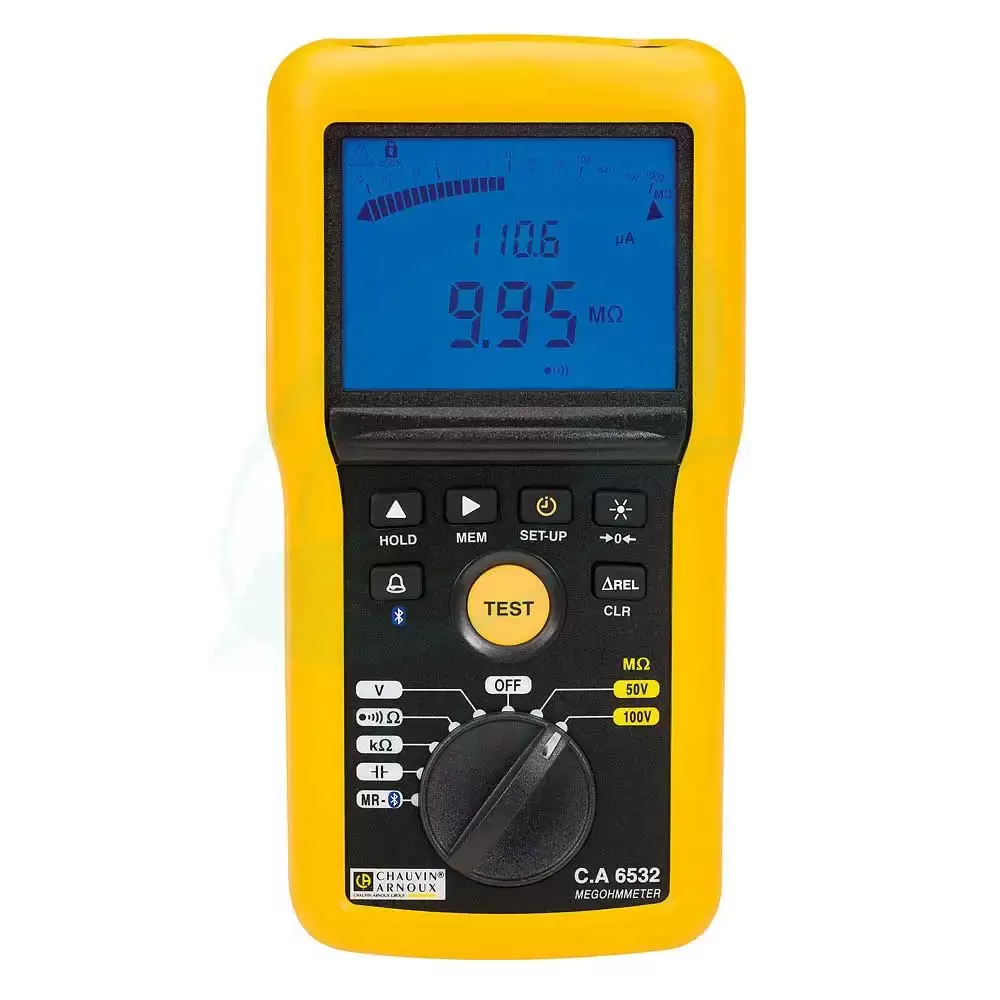

CA-6532 Electrical Dielectric Strength Meter Portable size, light weight. Convenient and easy to use It is a new model designed for use in the 10 V to 1 kV measurement range under IEC 61557 standard. It has new functions for dielectric strength testing, such as test voltage lockout. Setting periods for test measurements, calculating PI and DAR values.
- Self-test Lock, Timer, PI and DAR function
- Send communication with Bluetooth class 2
- 6 AA batteries
