Size 211 x 108 x 60 mm.

-

LCD display and bar graph display while testing

-

ย่านที่วัดค่าได้ 20 GΩ

IP54 protection, IEC 61557 600 V CAT IV safety standard.

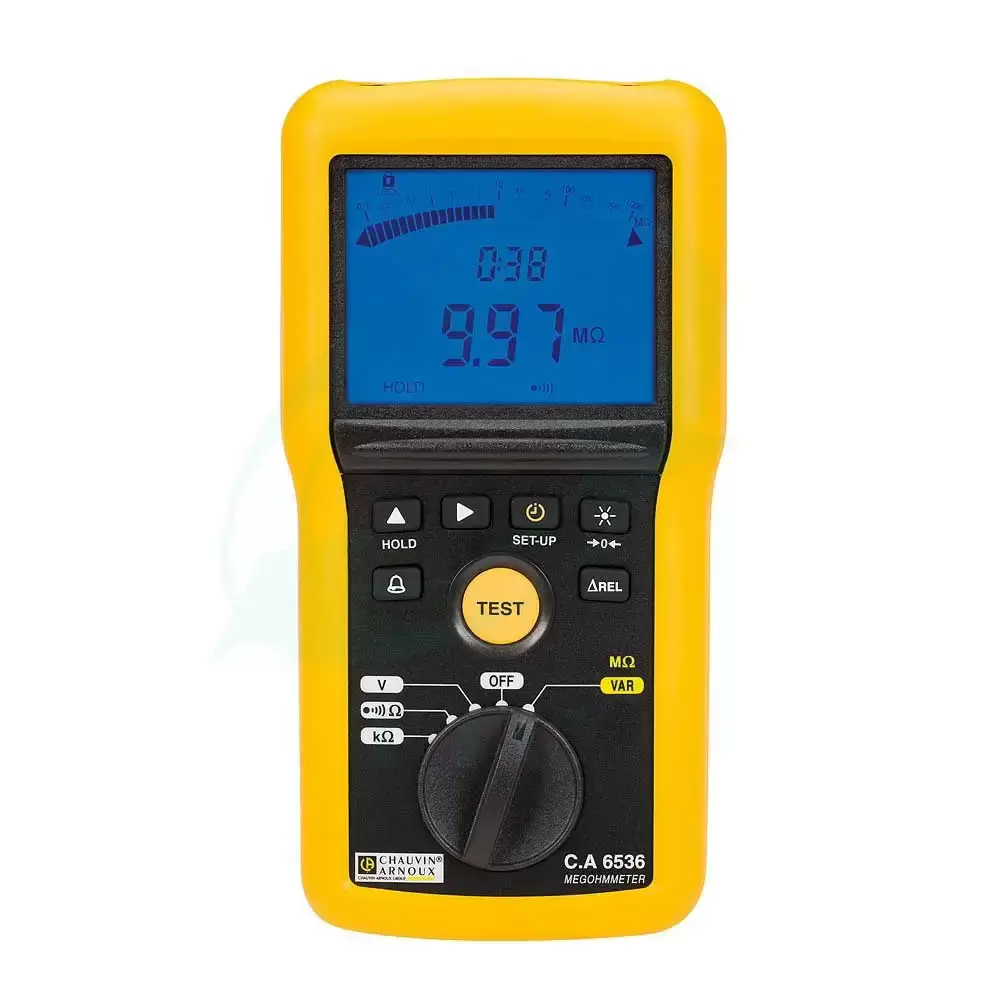

Product specification: CA-6536 Electrical Dielectric Strength Meter Portable size, light weight. Convenient and easy to use It is a new generation instrument designed for use in the 10 V to 100 V measuring range under IEC 61557 standard. It has new functions for testing dielectric values ​​such as test voltage lockout, test measurement time setting. and setting the test pressure as needed
- Dielectric strength test voltage 10 to 100 V, measuring range 20 GΩ
- Self-test Lock, Timer, and Variable test voltage functions
- Continuous measurement of 200 mA / 20 mA
- Measure voltage up to 700 V
- Measure and calculate cable distance 0 - 100 km
- 6 AA batteries
