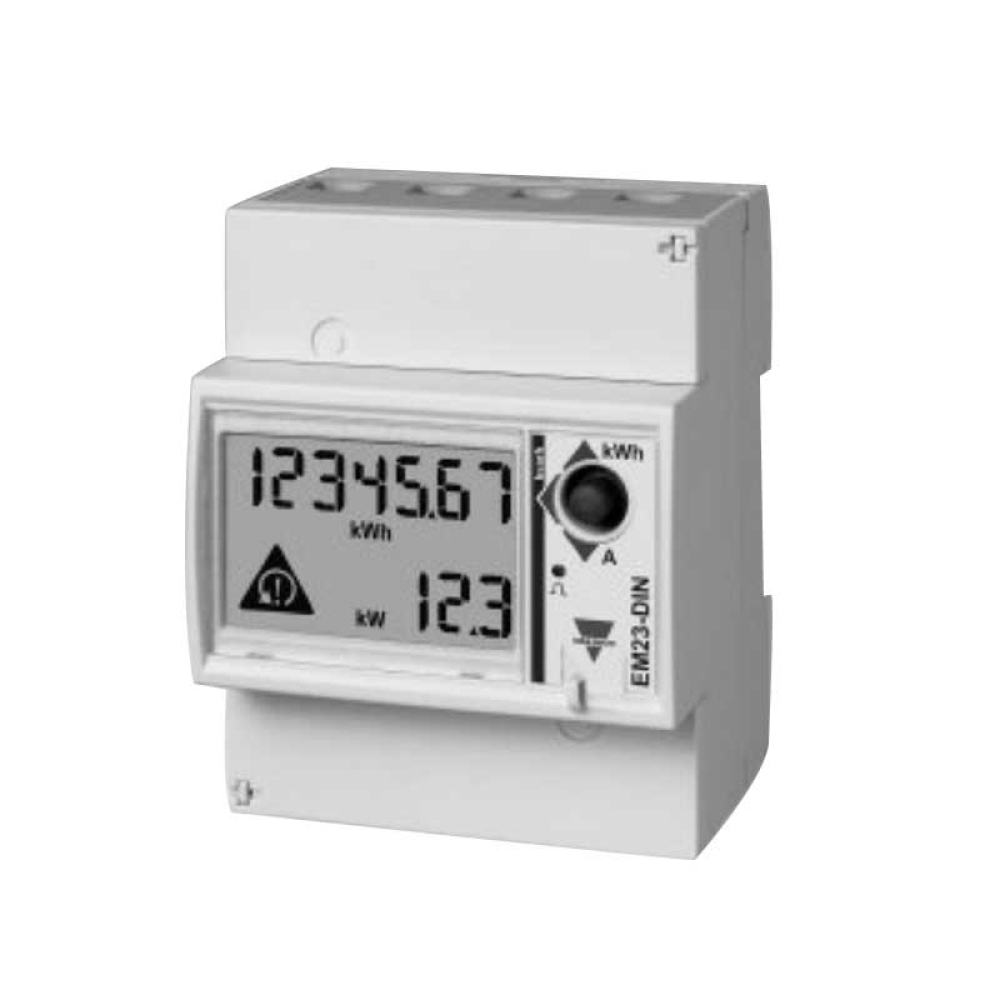

Brand : Carlo Gavazzi
|
Model : EM23-DIN Series |
Type : Energy Meter Analyzer Properties
Conectivity
RS485 Depend on ordered
screen size
LCD, 9 mm character height
installation
DIN rail or wall mounting
body size
71 × 90 × 64.5 mm
Accuracy
±0.5% RDG + 1DGT (Current); Class 1 for kWh energy
operating temperature range
-20°C to +55°C
Weight
Approx. 400 g
power supply
Self power supply, 230V L-N, -15% to +15%, 45–65 Hz
output
Open collector pulse output; RS485 optional
Measuring range
Can measure : W, Var, kWh, kVarh, W, A, and phase sequence.
measure current
Direct connection, 10(65) A
pressure gauge
400 VAC , 660 VAC
IP
IP40
details
- Electric energy meter (kWh), type TRMS- with 1 pulse output (1000pulse /kWh)
- 1-phase 230 VAC (L-N)
- 1-phase 230 VAC (L-N)
