Power Analyzer/Renewable Energy

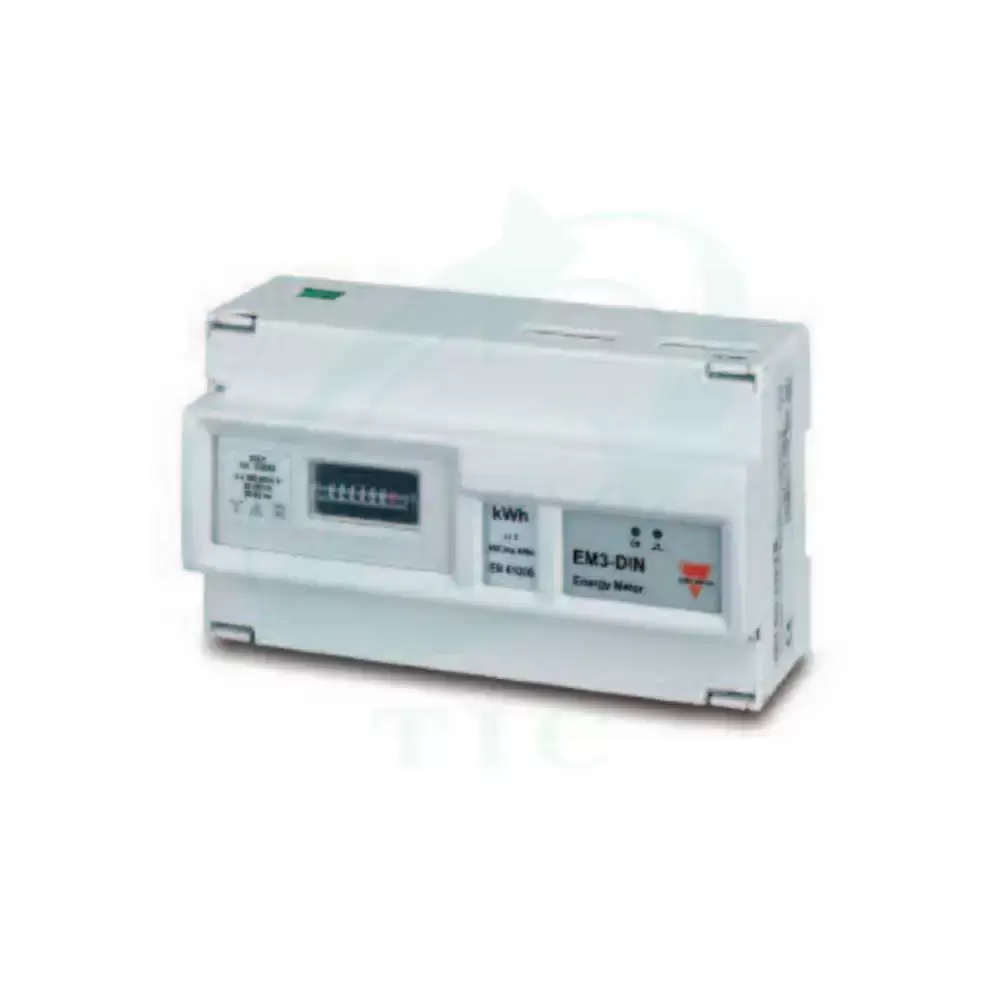

Brand : Carlo Gavazzi
|
Model : EM3-DIN Series |
Type : Energy Meter Analyzer Properties
Conectivity
RS485 is not supported by the EM3-DIN series
screen size
No LCD display (Mechanical counter with LED status indicator)
installation
DIN Rail or Wall Mounting
body size
162.5 × 90 × 63 mm
Accuracy
Class 2 (Active Energy), Class 3 (Reactive Energy)
operating temperature range
-20°C to +55°C
Weight
800 g.
power supply
Self-powered 208 / 220 / 400 VAC (L-L), or Auxiliary Power Supply 115 / 230 VAC for 660 VAC models
output
AO2900: Dual Open Collector Pulse Output (2 channels) / AO2910: 1 Relay + 1 Open Collector (Pulse/Alarm)
Measuring range
Active Energy (kWh) or Reactive Energy (kvarh), selectable measurement type
measure current
20(90) A, Direct Connection without CT
pressure gauge
208 / 220 / 400 / 660 VAC (L-L), depending on model
temperature/humidity
0–90% RH (Non-condensing)
IP
Front: IP40 / Terminals: IP20
details
Energy meter supporting 2-phase and 3-phase unbalanced load systems. Measures either Active or Reactive Energy, selectable by configuration. Supports direct current measurement up to 90 A and offers Pulse or Relay + Open Collector output options.
Data Sheet
