Level Switch
Brand : FineTek
|

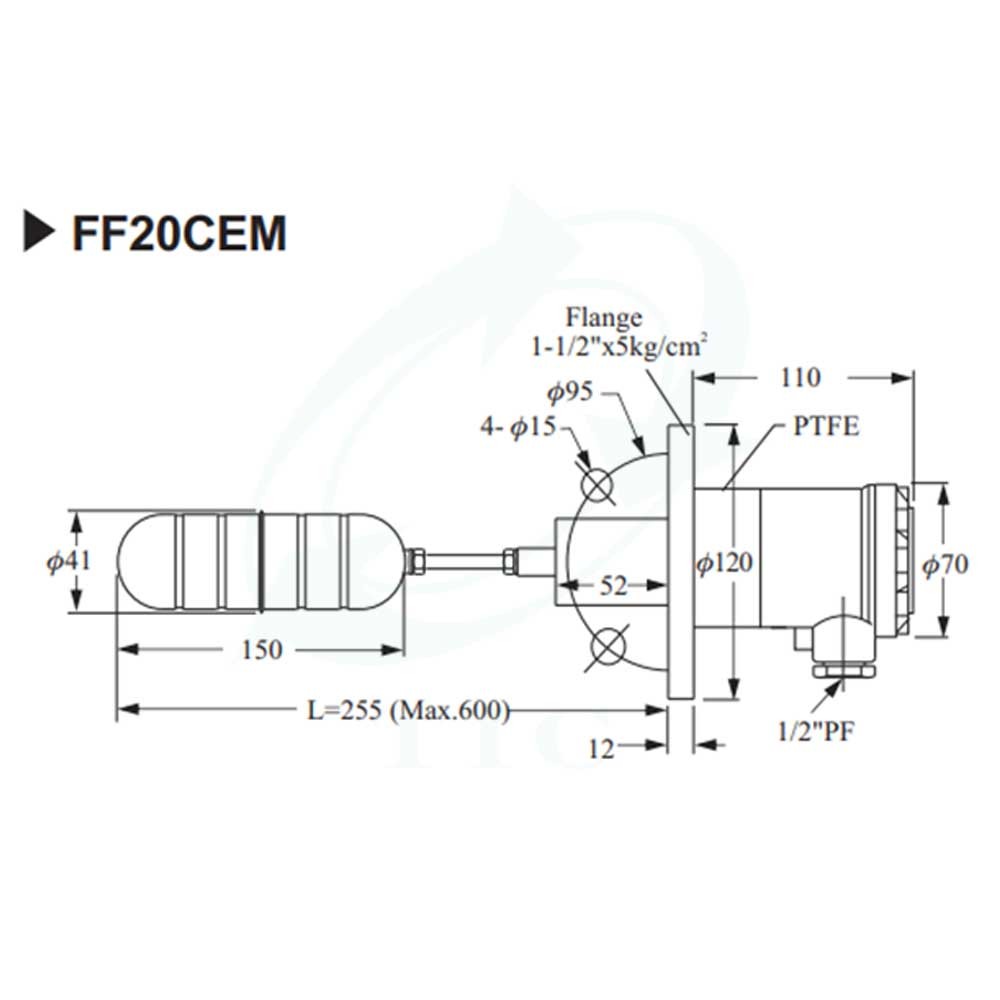

Model : FF20CEM |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
200 องศา C
output
SPDT 40W 250VAC/200VDC (Reed switch)
power supply
-
Housing Material
Material Float (Stainless steel SUS 304)/ Housing (Aluminum Alloy)
Installation
Flange connection (1-1/2"x5kg/cm2)
liquid type
Able to measure in sediment application
Operating pressure
10 bar
Weight
1.8 kg
Maximum voltage
24 VAC/DC
Specific gravity
0.65
IP
IP 65
details
It is a device used to control the level of liquids. Installed from the side of the tank high durability
