Level Switch
Brand : FineTek
|
Model : SE3820BCRG |
Type : Level/Flow/Pressure and Solenoid valves Properties
operating temperature range
-10°C - 60°C
output
Contract SPDT 5A/250 VAC
power supply
220 VAC
Housing Material
Aluminum
Installation
Flange type 2-1/2" x 5kg/cm2 (JIS)
liquid type
User with solid
Operating pressure
-
Weight
-
Maximum voltage
220 VAC
Specific gravity
-
IP
IP65
details

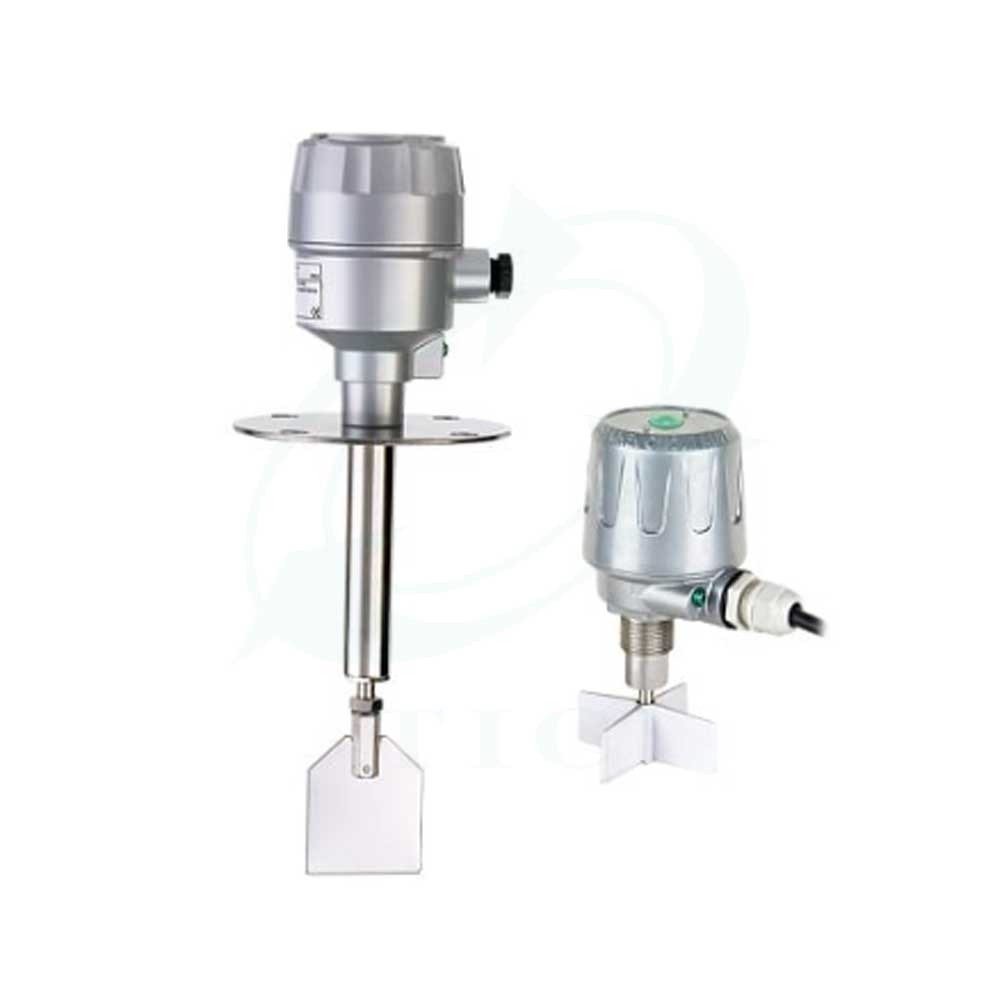

It is a rotary vane solids level control switch. Suitable for controlling the level of objects in silos. or in storage tanks for objects such as pills, plastic pellets, or agricultural products
- Rotation speed 1 RPM
- Torque 0.5 - 1 kg/cm
- Can be installed on both the top or the side of the tank
- Rotation speed 1 RPM
- Torque 0.5 - 1 kg/cm
- Can be installed on both the top or the side of the tank
Data Sheet
