Encoder
Brand : Kubler
|

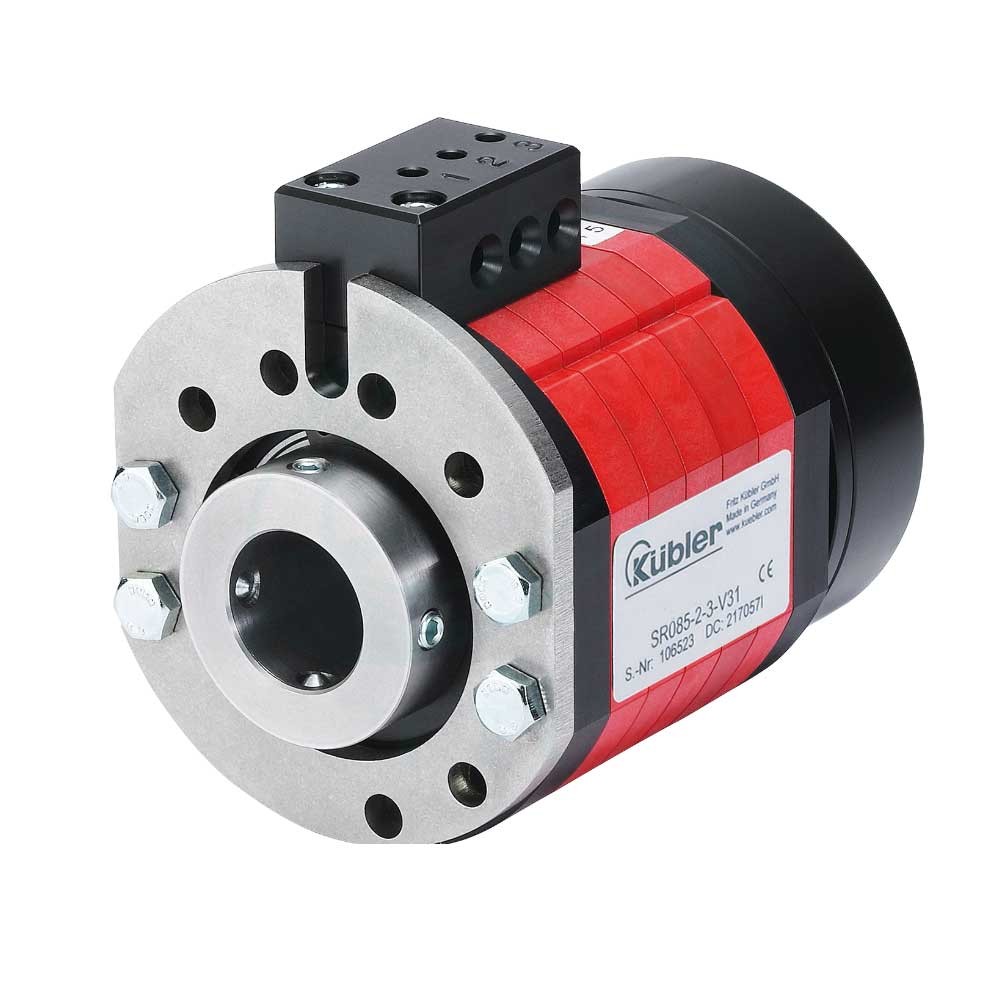

Model : SR085 Series (Slip ring) |
Type : Sensor/Encoder/Safety Light Curtains/Connector Properties
body size
85 mm.
operating temperature range
-
output
-
power supply
-
Pros
-
Distance
-
IP
IP64
Housing Material
Contact combination: Copper/Bronze or Silver/Precious metal
Measuring range
-
details
In general slip rings are used to transmit power, signals or data, pneumatic and hydraulic, from a stationary to a rotating platform. The transmission between the stator and rotor takes place via sliding contacts and is extremely reliable. The construction is modular and offers the greatest flexibility in a variety of applications.
- High quality product from Germany
- Dimension: 85 mm
- Protection: max IP64
- Transmission paths: 20 load- or signal rings, Fieldbus
- Contact combination: Copper/Bronze or Silver/Precious metal
- Maintenance cycles: 100 Mio
- Type of installation : Hollow shaft max. 30 mm
- Speed 800 min-1
- High quality product from Germany
- Dimension: 85 mm
- Protection: max IP64
- Transmission paths: 20 load- or signal rings, Fieldbus
- Contact combination: Copper/Bronze or Silver/Precious metal
- Maintenance cycles: 100 Mio
- Type of installation : Hollow shaft max. 30 mm
- Speed 800 min-1
speed
Maximum not more than 150 cycles/min.
electrical load voltage
25 A, 240 V AC/DC
20 A, 400 V AC/DC
16 A, 240 V AC/DC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
16 A, 240 V AC/DC
10 A, 400 V AC/DC
Data Sheet
