Universal input :Thermocouple (TC) : J, K, T, E, B, R, S, N, L/ RTD PT100Ω (DIN/JIS)Voltage : -60~60 mV/-20~20 V
Current : -20~20 mA

LCD Display can record and real-time display

90 to 250 VAC

-

6.4"Color TFT LCD with 640X480 pixels resolution

Alarm output 4 ch.(Open collector)

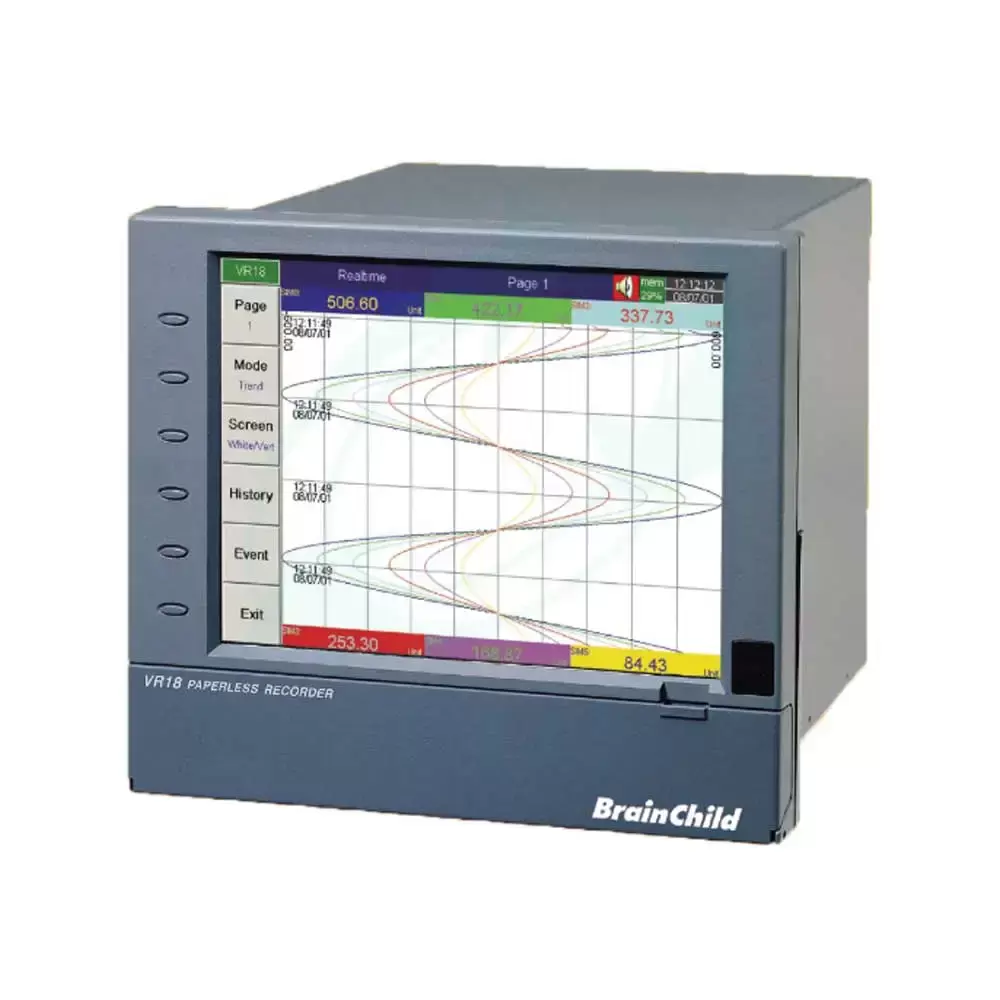

- It is the world first paperless recorder of the same size in highest resolution VGA TFT display
- 18 isolated analog input in maximum
- 8MB storage memory on board
- Storage media : 128, 512 MB, 1 GB CF (Compact Flash) cards
- Various display formats : Vertical trend , horizontal trend, bar Graph, numerical or mixed
- Alarm and sensor break detection function
- Option : Analog output, digital input, digital output, 24VDC auxiliary power supply
- Sampling rate : 5 times/ second- Approval standard : UL61010C-1, CSA C22.2 No. 24-93, CE: EN61010-1 (IEC1010-1)
- 174 mm short depth
- Communication : Standard Ethernet and optional RS-232/ 422/ 485
- Power supply :90-250VAC, 47-63Hz, 60VA, 30W maximum11
-18VDC or 18-36 VDC, 60VA, 30W maximum

CF Card : 1 GB Standard
