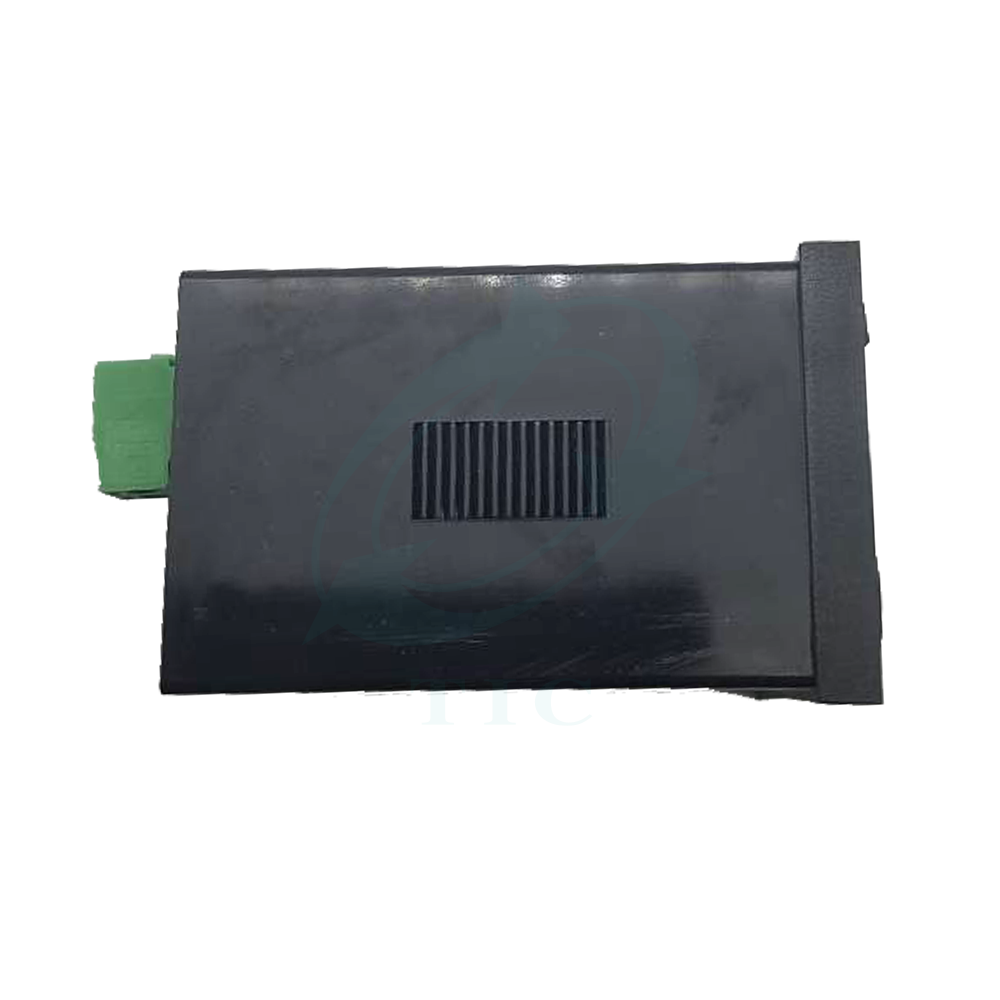

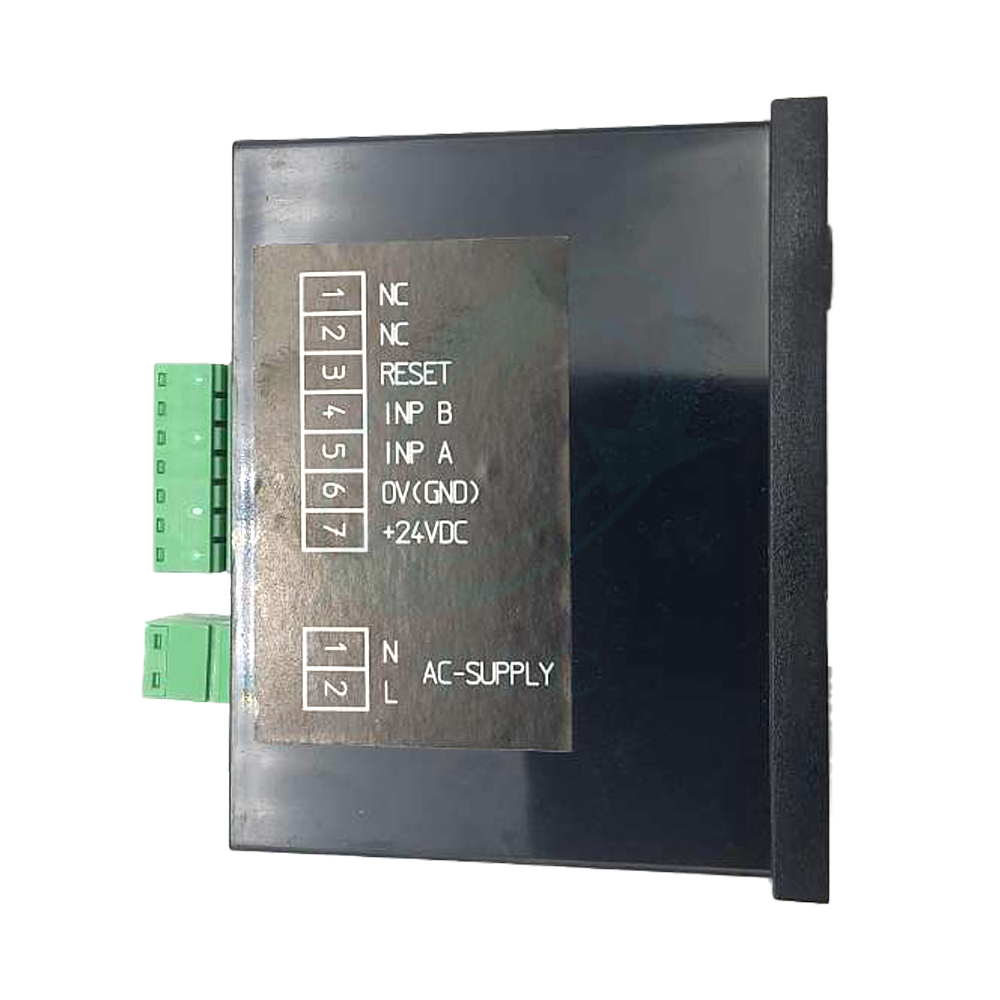

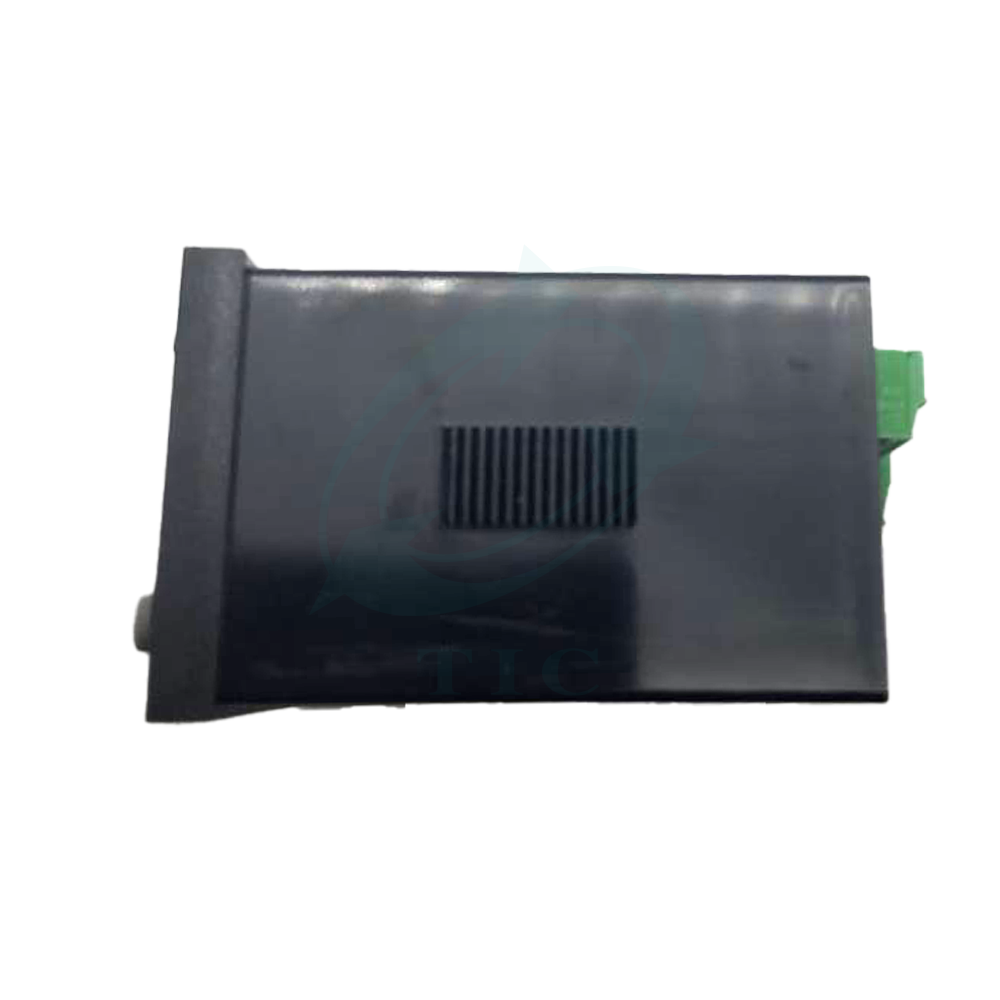

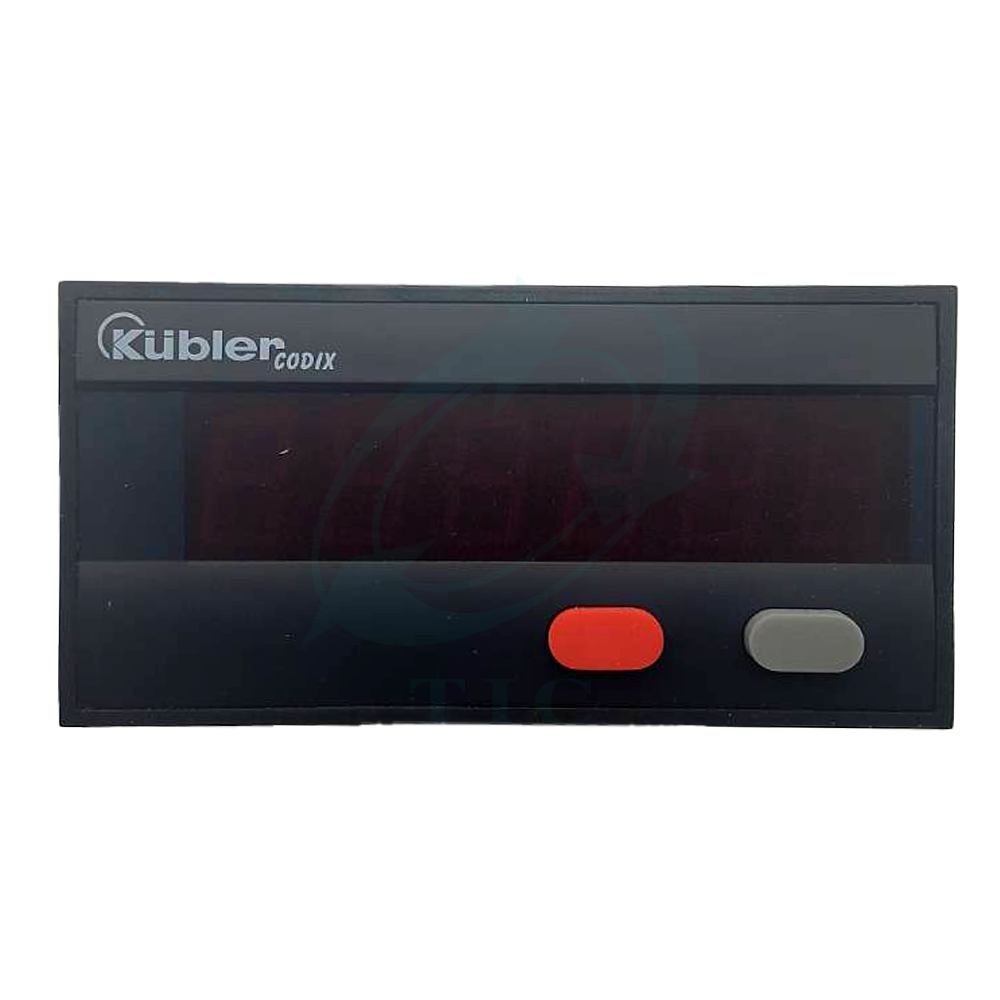

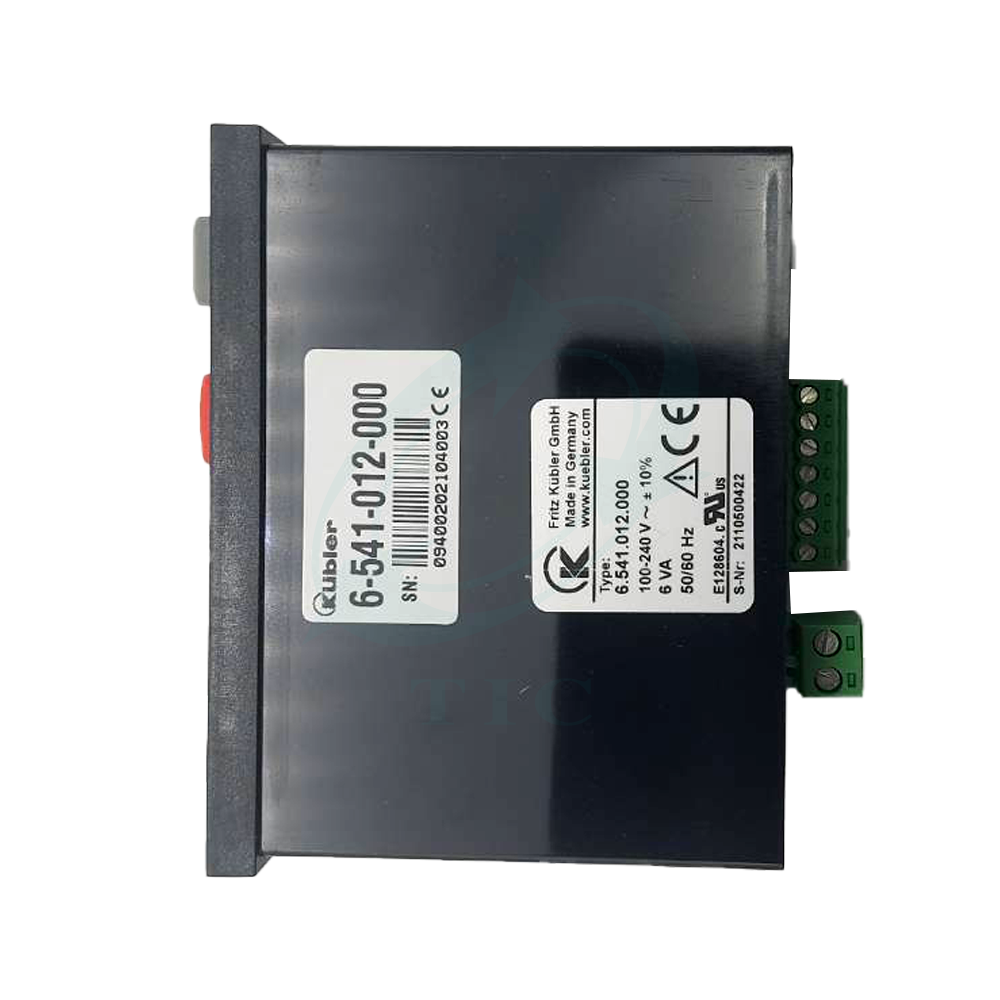

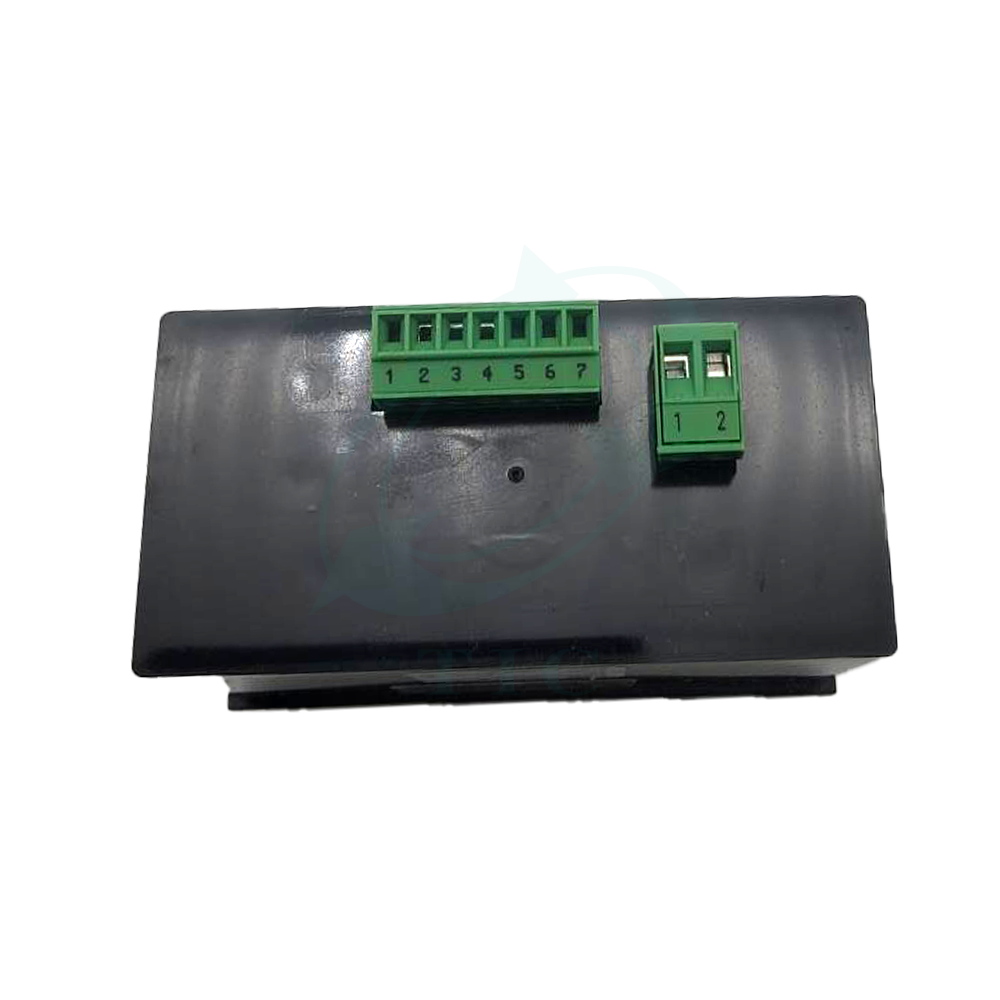

Digital Counter
Brand : Kubler
|
Model : 6-541 series |
Type : Counter/Timer/Time switch Properties
body size
96 x 48 mm.
input
PNP/NPN
operating temperature range
-10 °C to 50 °C
power supply
90-260 VAC
IP
IP65
details
- Supply 10 ... 30 V DC, with reverse polarity protection- voltage: 90 ... 260 V AC- Current consumption: max. 50 mA, 6 VA- Display: 6-digit 7-segment red LED display;14 mm [0.551"] high- Data backup: EEPROM- Housing: dimension 96 x 48 mm [3.78 x 1.89"]- according to DIN 43 700; RAL 7021, grey- Polarity of Inputs: programmable, npn or pnp for all inputs- Input resistance: approx. 5 kΩ- Counting frequency*: max. 60 kHz, can be damped to 30 Hz,- depending on operating mode- at position display max. 25 kHz- Reset time: 5 ms- Input switching level DC-version- Ambient temperature: -20 ... +65 °C [-4 .. 149 °F] non-condensing- Storage temperature: -25 ... +70 °C [-13 ... 158 °F]- Protection: IP 65 front side- Weight: approx. 150 g [5.291 oz]- Multiplication and division factor (0.0001to 99.9999), to display corresponding engineering units, e.g. position in 1/10 mm and speed in RPM
Data Sheet
